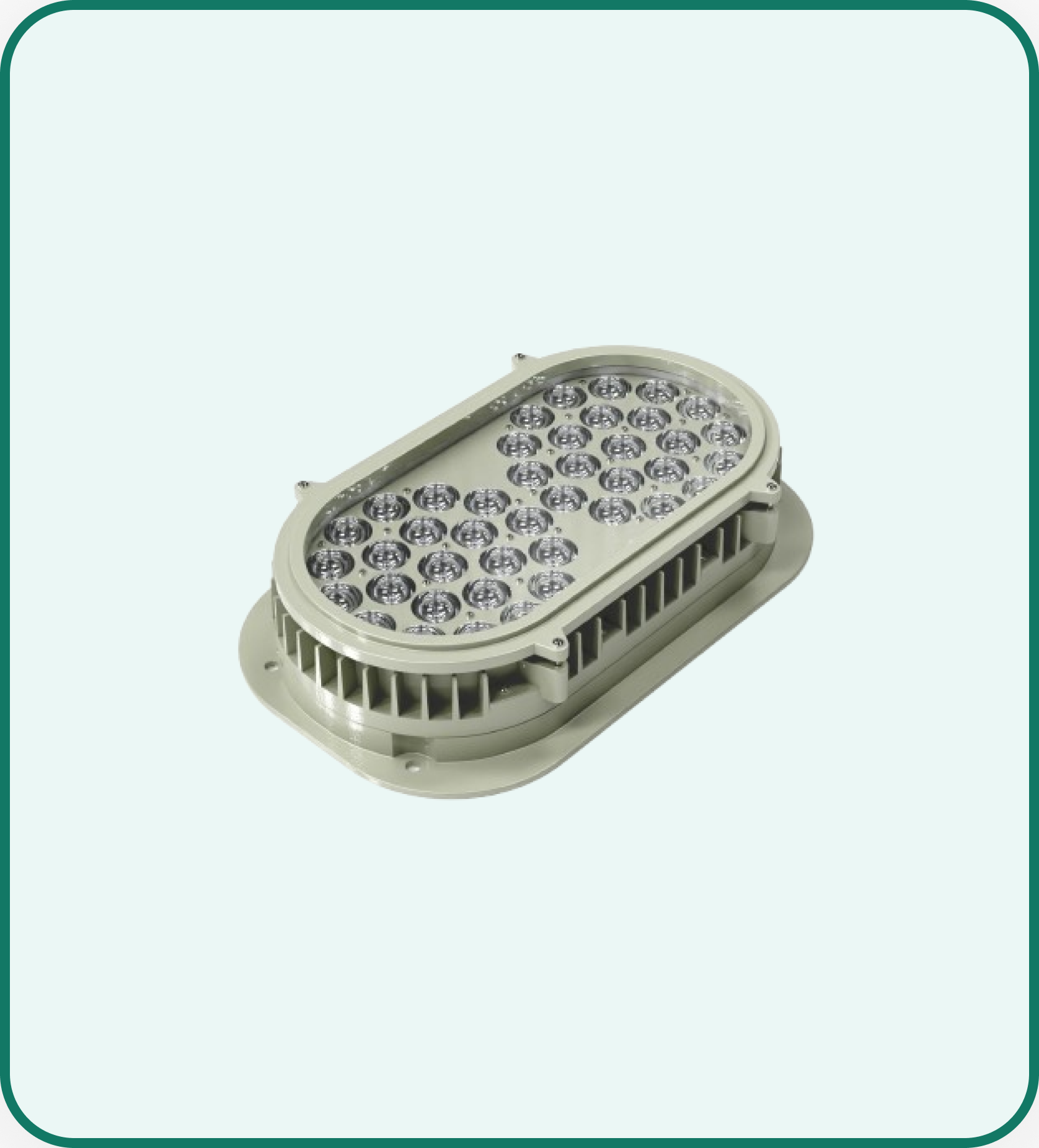

Locomotive Headlights

S.Internationals Locomotive Headlights is for catering to needs for enhanced visibility and safety in railway operations.

Features

Two independent high-intensity LED modules with dedicated driver units for enhanced operational reliability.
Designed for 110 VDC nominal railway systems, with an operating range of 70–140 VDC.
Bright and dim modes are specified to support track visibility while managing glare.
IP66 water and dust proof enclosure with toughened front glass and corrosion-resistant hardware.

Parameter	Sub-Parameter	Specification
Input Voltage		110 VDC nom. (70 VDC to 140 VDC)
Power		100 Watts
Optical Performance	Illumination	8500 lux at 8 meter in bright mode 1100 lux at 8 meter in dim mode
	Beam Angle	12 Degrees
	Colour Temperature	4500 K
	CRI	>80
Efficiency		90%
Mechanical Details	Housing	Cast Aluminum
	Weight	15 kg
	Dimensions	450 mm × 270 mm × 90 mm
	Colour	Siemens Grey
	Mounting Arrangement	Customised Mounting Plate for each application
Electrical Protection		Reverse Polarity, Surge, Spike, Over Voltage and Under Voltage
Compliance		IEC 60529 (IP66), IEC 60571, IEC 61000, IEC 61373/60068-2-6, IEC 60598-1, IEC 62722-2-1, IEC 61347, IEC 62384
